Siniat Acoustic Resilient Mount Wall Systems

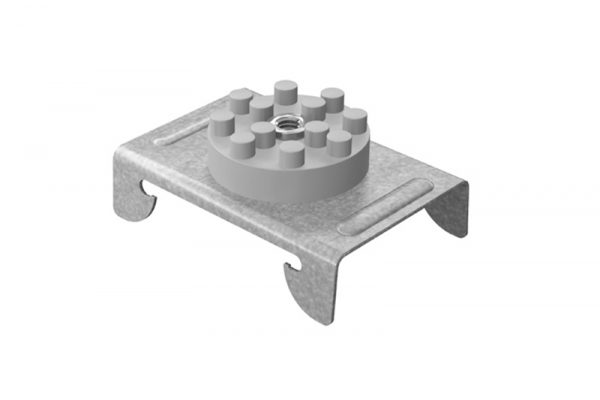

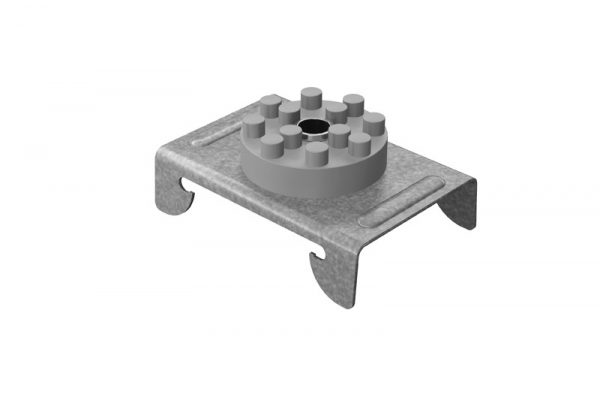

Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Clip FC Resilient Mount (Bag of 50) 40 1.15 80 0.0572 AC001 Clip Chase Wall Mount (Bag of 50) 35 1.15 210 0.062 AC001-CH Clip Furring Channel Screw Adjustable Mount (Bag of 50) 35 1.15 67 0.04 ACFCSAM Clip Concrete to Stud Wall Mount (Bag of 50) 35 1.15 110 0.059 AC001-DCS Clip FC Resilient Mount Threaded (Bag of 50) 40 1.15 80 0.0572 AC001M6 Clip Purlin Direct Fix Clip to FC (Bag of 50) 35 1.15 130 0.13 AC001-PC Clip TCR to FC Resilient (Bag of 50) 40 1.15 80 0.035 AC79SRES Clip GripClip Resilient (Bag of 50) 75 1.5 40 0.085 ACGRIP-RES Clip GripClip Resilient Long(Bag of 50) 75 1.5 63 0.1 ACGRIP-RESLONG Clip FC Adjustable Resilient Mount (Bag of 50) 25 0.8 25 0.0388 ACFCRESAM Clip Adj TCR Resilient (Bag of 50) 30 1.15 100 0.07 ACTCRRES-100 200 0.103 ACTCRRES-200 300 0.144 ACTCRRES-300 Clip Adj TCR M6 Thread (Bag of 50) 30 1.15 100 0.07 ACTCRRESM6-100 200 0.103 ACTCRRESM6-200 300 0.144 ACTCRRESM6-300 Clip Isolation Hanger (Bag of 50) n/a n/a n/a 0.03 ACRAIH-05 Stud 51 Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Stud 51 51 0.5 2400 1.24 AWSL51-05-24 2700 1.39 AWSL51-05-27 3000 1.55 AWSL51-05-30 3600 1.86 AWSL51-05-36 Stud 64 Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Stud 64 64 0.5 2400 1.36 AWSL64-05-24 2700 1.52 AWSL64-05-27 2800 1.58 AWSL64-05-28 3000 1.70 AWSL64-05-30 3600 2.04 AWSL64-05-36 4200 2.38 AWSL64-05-42 4800 2.72 AWSL64-05-48 6000 • 3.39 AWSL64-05-60 0.75 2400 • 2.00 AWSL64-075-24 2700 2.25 AWSL64-075-27 3000 2.50 AWSL64-075-30 3600 3.00 AWSL64-075-36 4200 3.50 AWSL64-075-42 4800 3.51 AWSL64-075-48 6000 5.00 AWSL64-075-60 1.15 2400 • 3.02 AWSL64-115-24 2700 3.40 AWSL64-115-27 3000 3.78 AWSL64-115-30 3600 4.53 AWSL64-115-36 4200 • 5.29 AWSL64-115-42 4800 6.05 AWSL64-115-48 6000 7.56 AWSL64-115-60 Stud 76 Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Stud 76 76 0.55 2400 1.66 AWSL76-055-24 2700 1.87 AWSL76-055-27 3000 2.08 AWSL76-055-30 3600 2.49 AWSL76-055-36 4200 2.91 AWSL76-055-42 4800 3.32 AWSL76-055-48 6000 • 4.15 AWSL76-055-60 0.75 2400 • 2.23 AWSL76-075-24 2700 2.41 AWSL76-075-27 3000 2.68 AWSL76-075-30 3600 3.22 AWSL76-075-36 4200 3.76 AWSL76-075-42 4800 4.46 AWSL76-075-48 6000 5.58 AWSL76-075-60 1.15 2400 • 3.38 AWSL76-115-24 2700 3.80 AWSL76-115-27 3000 4.22 AWSL76-115-30 3600 5.07 AWSL76-115-36 4200 • 5.91 AWSL76-115-42 4800 • 6.76 AWSL76-115-48 6000 • 8.45 AWSL76-115-60 Stud 92 Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Stud 92 92 0.55 2400 1.80 AWSL92-055-24 2700 2.03 AWSL92-055-27 3000 2.25 AWSL92-055-30 3600 2.70 AWSL92-055-36 4200 3.15 AWSL92-055-42 4800 3.60 AWSL92-055-48 6000 4.51 AWSL92-055-60 0.75 2400 2.42 AWSL92-075-24 2700 2.73 AWSL92-075-27 3000 3.03 AWSL92-075-30 3600 3.64 AWSL92-075-36 4200 4.24 AWSL92-075-42 4800 4.85 AWSL92-075-48 6000 6.06 AWSL92-075-60 7200 • 7.27 AWSL92-075-72 1.15 2400 3.67 AWSL92-115-24 2700 4.13 AWSL92-115-27 3000 4.58 AWSL92-115-30 3600 5.50 AWSL92-115-36 4200 6.42 AWSL92-115-42 4800 7.34 AWSL92-115-48 6000 9.17 AWSL92-115-60 7200 • 11.00 AWSL92-115-72 Stud 150 Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Stud 150 150 0.75 2700 • 3.75 AWSL150-075-27 3000 4.17 AWSL150-075-30 3600 5.00 AWSL150-075-36 4200 • 5.84 AWSL150-075-42 4800 6.67 AWSL150-075-48 6000 8.34 AWSL150-075-60 7200 • 10.00 AWSL150-075-72 1.15 2700 • 5.68 AWSL150-115-27 3000 6.31 AWSL150-115-30 3600 7.57 AWSL150-115-36 4200 • 8.83 AWSL150-115-42 4800 10.09 AWSL150-115-48 6000 12.61 AWSL150-115-60 7200 • 15.14 AWSL150-115-72 AcousticStud Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE AcousticStud 92 0.55 2400 2.48 AAS92-055-24 2700 2.79 AAS92-055-27 3000 3.1 AAS92-055-30 3600 3.72 AAS92-055-36 4200 4.34 AAS92-055-42 4800 4.96 AAS92-055-48 6000 6.2 AAS92-055-60 Track Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Track 51 51 0.5 * 3000 1.45 AT51-05-30 Track 64 64 0.5 * 3000 1.5 AT64-05-30 0.7 3000 2.2 AT64-070-30 1.15 3000 3.33 AT64-115-30 Track 76 76 0.5 * 3000 1.86 AT76-050-30 0.7 3000 2.79 AT76-070-30 1.15 3000 3.33 AT76-115-30 Track 92 92 0.5 * 3000 2.07 AT92-050-30 0.7 3000 2.79 AT92-070-30 1.15 3000 2.79 AT92-115-30 Track 150 150 0.75 3000 3.85 AT150-075-30 1.15 3000 5.83 AT150-115-30 DH Track Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE DH Track 51 51 0.55 * 3000 2.11 ADHT51-055-30 DH Track 64 64 0.55 * 3000 2.21 ADHT64-055-30 0.7 3000 2.98 ADHT64-070-30 1.15 3000 3.78 ADHT64-115-30 DH Track 76 76 0.55 * 3000 2.32 ADHT76-055-30 0.7 3000 2.98 ADHT76-070-30 1.15 3000 4.5 ADHT76-115-30 DH Track 92 92 0.55 * 3000 2.59 ADHT92-055-30 0.7 3000 3.49 ADHT92-070-30 1.15 3000 5.17 ADHT92-115-30 DH Track 150 150 0.75 3000 4.48 ADHT150-075-30 1.15 3000 6.78 ADHT150-115-30 Slotted DH Track Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE DH Track 64 Slotted 64 0.75 3000 2.64 ASDHT64-075-30 1.15 3000 4.06 ASDHT64-115-30 DH Track 76 Slotted 76 0.75 3000 2.71 ASDHT76-075-30 1.15 3000 4.31 ASDHT76-115-30 DH Track 92 Slotted 92 0.75 3000 3.10 ASDHT92-075-30 1.15 3000 4.78 ASDHT92-115-30 DH Track 150 Slotted 150 1.15 3000 6.20 ASDHT150-115-30 Track Flexible Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Track Flexible 51 0.55 2400 1.35 ATFLEX51-2400 64 0.55 2400 1.58 ATFLEX64-2400 76 0.55 2400 1.71 ATFLEX76-2400 92 0.75 2400 1.86 ATFLEX92-2400 Battens Name Image DEPTH (mm) BMT (mm) WIDTH (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Domestic Batten 16 16 0.38 35 4800 1.11 AFCDB-48 6000 1.39 AFCDB-60 Back Blocking Batten 16 16 0.38 35 300 0.07 AFCBBB-0300 Cyclonic Batten 22 0.42 30 6100 2.21 AFCCB22-61 Batten 35 35 0.42 35 4800 2.2 AFCCB35-48 6000 2.76 AFCCB35-60
