Siniat Metal Beads & Angles

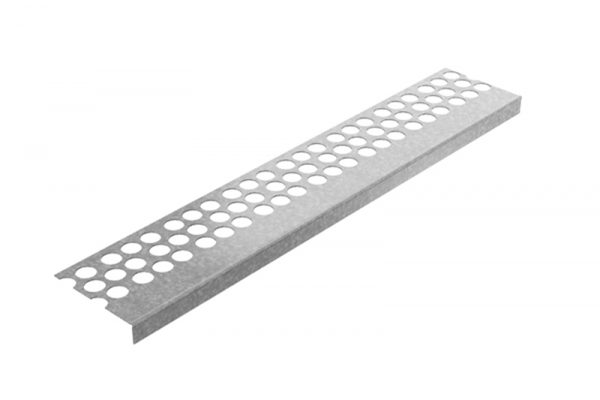

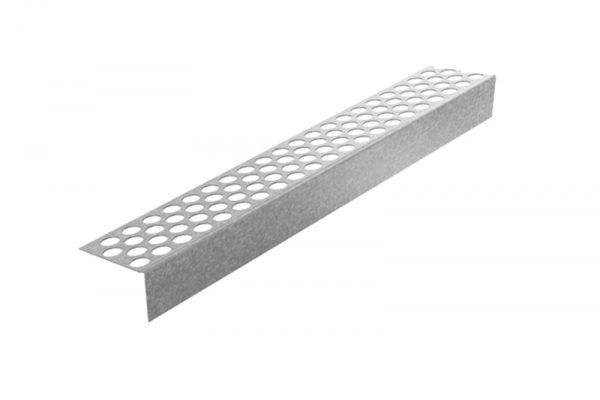

Steel Reveal Angles Name Image WIDTH (mm) BMT (mm) LENGTH (mm) SHORT CODE Reveal Angle 20 0.8 3000 APLRA2030 3600 APLRA2036 25 3000 APLRA2530 3600 APLRA2536 30 3000 APLRA3030 3600 APLRA3036 35 3000 APLRA3530 3600 APLRA3536 40 3000 APLRA4030 3600 APLRA4036 45 3000 APLRA4530 3600 APLRA4536 50 3000 APLRA5030 3600 APLRA5036 60 3000 APLRA6030 3600 APLRA6036 65 3000 APLRA6530 3600 APLRA6536 75 3000 APLRA7530 3600 APLRA7536 80 3000 APLRA8030 3600 APLRA8036 90 3000 APLRA9030 3600 APLRA9036 100 3000 APLRA10030 3600 APLRA10036 110 3000 APLRA11030 3600 APLRA11036 120 3000 APLRA12030 3600 APLRA12036 135 3000 APLRA13530 3600 APLRA13536 150 3000 APLRA15030 3600 APLRA15036 Steel Beads Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Plaster Stopping Bead 6 0.5 3000 0.6393 APSB0630 10 3000 0.6519 APSB1030 13 3000 0.6519 APSB1330 16 3000 0.6519 APSB1630 Plaster Casing Bead 6 0.5 3000 0.5667 APCB0630 10 3000 0.5903 APCB1030 13 3000 0.6258 APCB1330 16 3000 0.6258 APCB1630 Steel Angles Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE External Angle 90 30 0.38 2400 0.3362 AP90EX24 2550 0.478 AP90EX2550 2700 0.3782 AP90EX27 3000 0.4203 AP90EX30 3600 0.5043 AP90EX36 External Angle 135 30 0.38 2400 0.3362 AP135EX24 2700 0.3782 AP135EX27 3000 0.4203 AP135EX30 3600 0.5043 AP135EX36 Internal Angle 90 30 0.38 2400 0.3362 AP90INT24 2700 0.3782 AP90INT27 3000 0.4203 AP90INT30 3600 0.5043 AP90INT36 Internal Angle 135 30 0.38 2400 0.3362 AP135INT24 2700 0.3782 AP135INT27 3000 0.4203 AP135INT30 3600 0.5043 AP135INT36 Steel Angles #2 Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Slotted Back Angle 50 0.75 2400 1.467 ASHA50-075-24 50 0.75 3000 1.567 ASBA50-075-30 75 1.15 2400 2.692 ASHA75-115-24 Backing Angle 25 0.7 3000 0.9182 ABA25-070-30 3600 1.1019 ABA25-070-36 35 0.7 3000 1.2855 ABA35-070-30 3600 1.5426 ABA35-070-36 50 3000 1.8364 ABA50-070-30 3600 2.204 ABA50-070-36 50 1.15 3000 2.7784 ABA50-115-30 75 3000 4.221 ABA75-115-30 100 3000 5.609 ABA100-115-30 Utility Angle 28 0.3 2400 0.3354 ABA28-030-24 40 0.3 1800 0.3613 ABA40-030-18 Steel Archway & Render Beads Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Archway Bead 30 0.38 3000 0.1583 APAWB30 Render Bead 1.5 32 0.38 2400 0.3348 ARB1.5/24 2700 0.3766 ARB1.5/27 3000 0.4185 ARB1.5/30 Render Bead 2.5 55 0.55 2400 0.8108 ARB2.5/24 2800 0.946 ARB2.5/28 Render Bead 4.5 55 0.55 2400 0.8108 ARB4.5/24 2800 0.946 ARB4.5/28 Stopping Angles Name Image WIDTH (mm) BMT (mm) LENGTH (mm) APPROX KG/ PIECE SHORT CODE Stopping Angle 10 0.38 3000 0.2961 APSA1030 13 0.2961 APSA1330 16 0.3479 APSA1630 20 0.38 3000 0.3479 APSA2030 Shadowline Stopping Angle 6 0.3 3000 0.3 APSASL0630 10 0.38 3000 0.4 APSASL30
