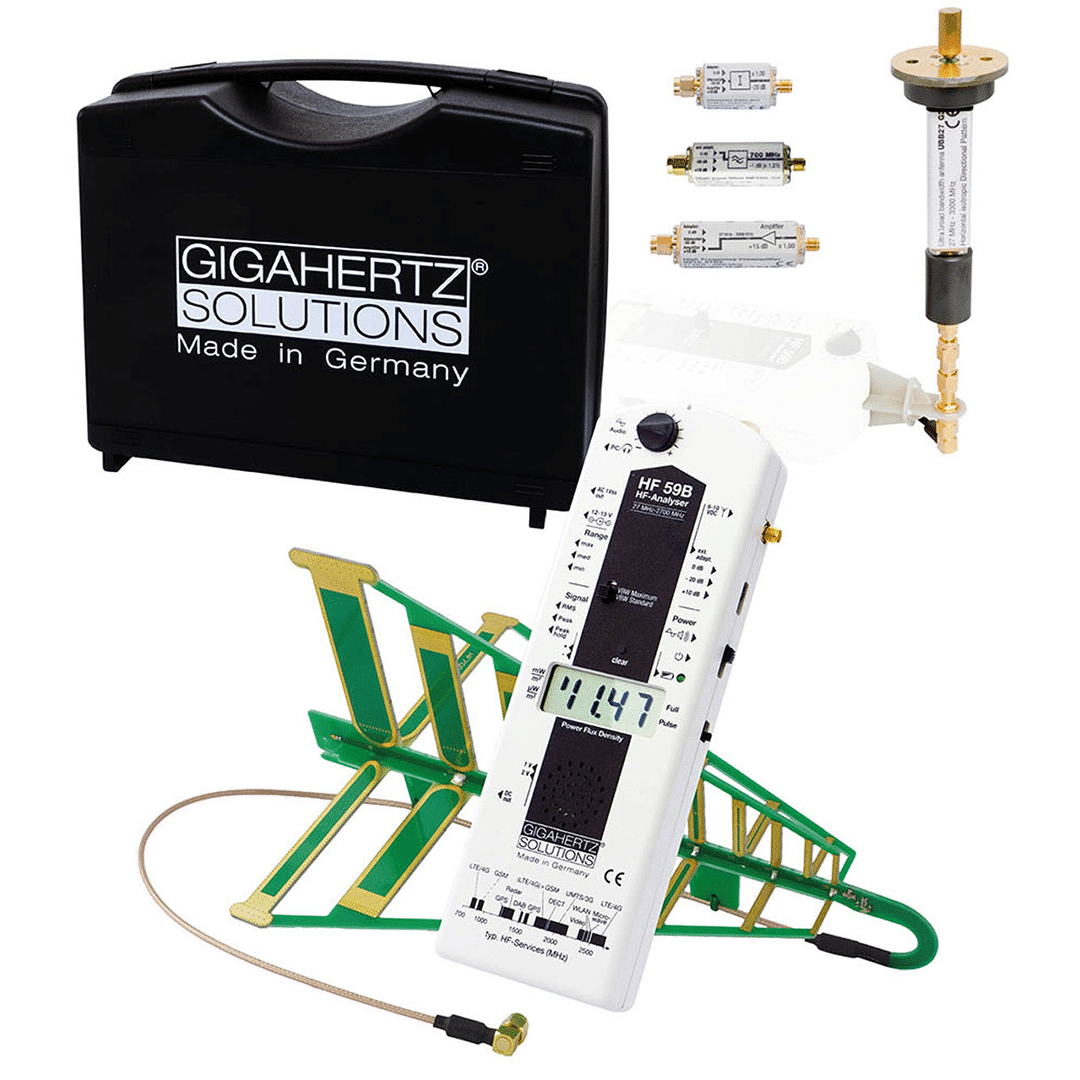

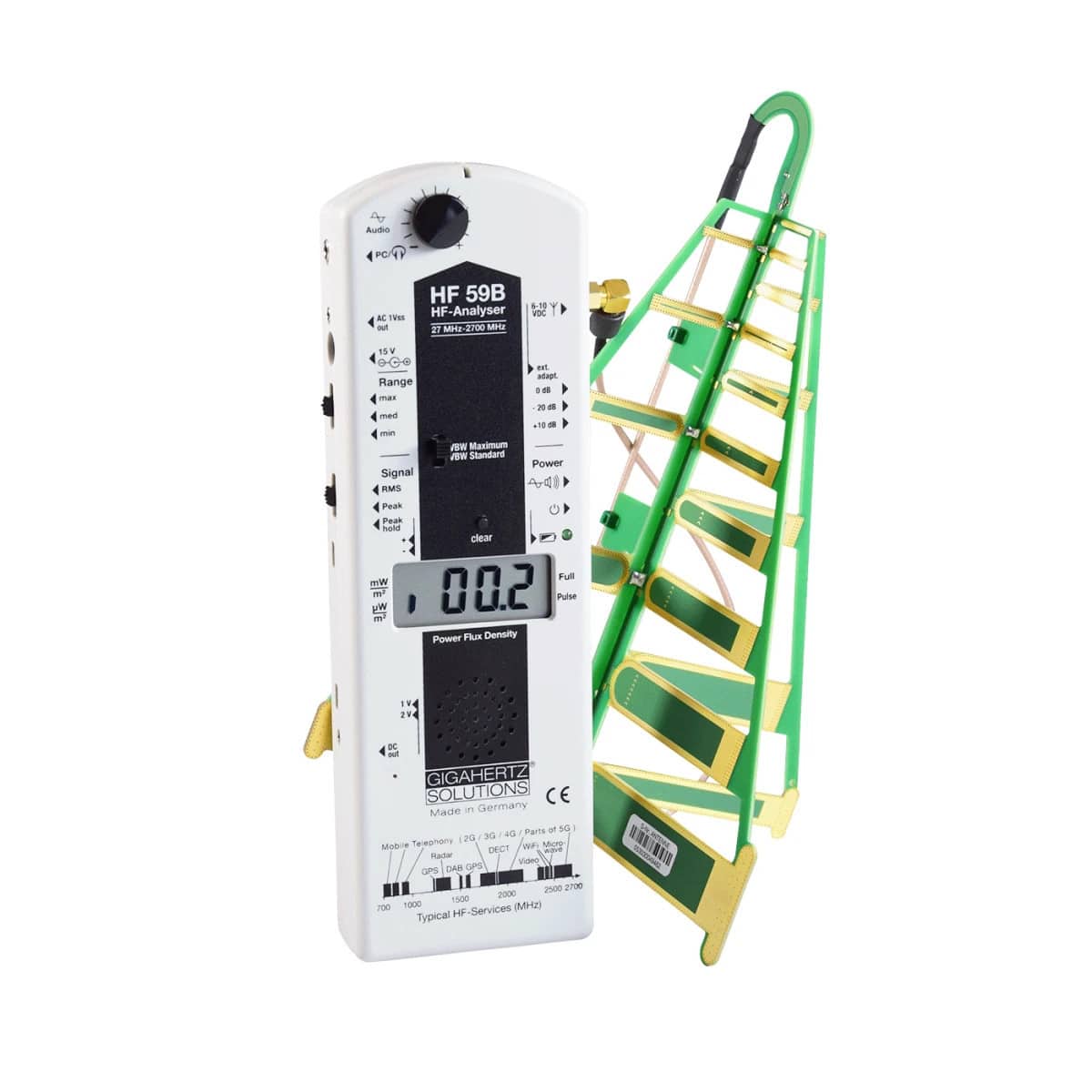

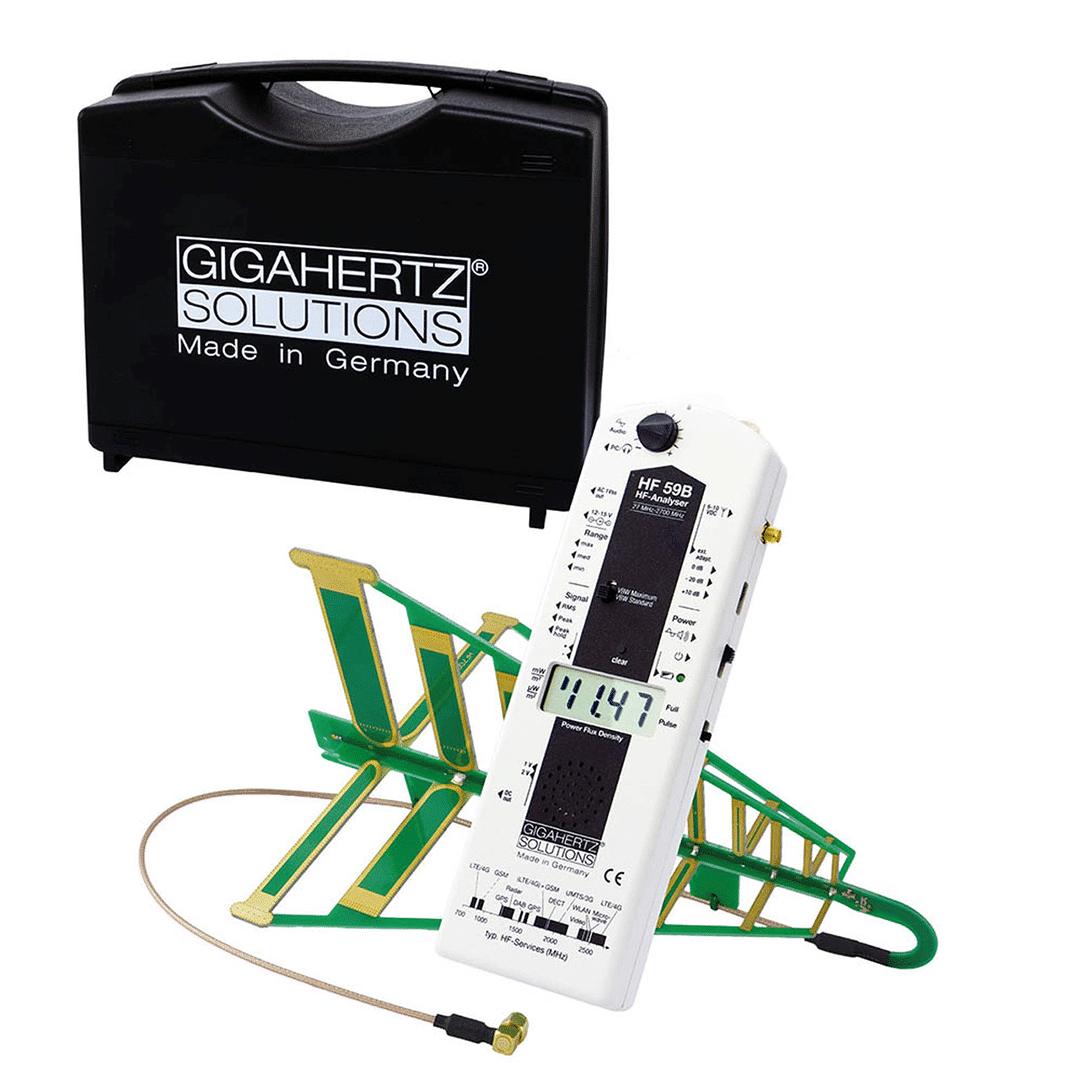

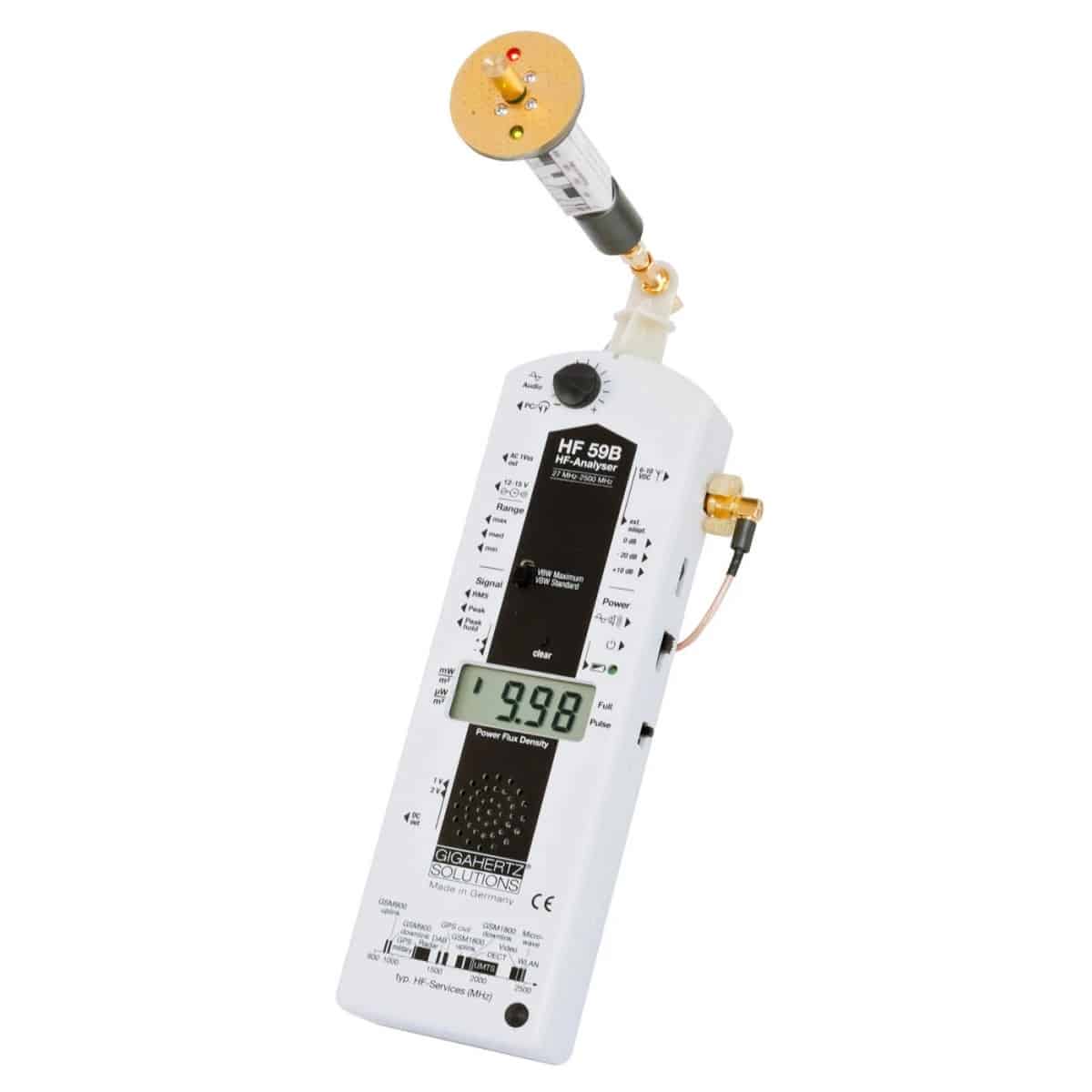

Description Gigahertz HF59B RF Meter The Gigahertz HF59B RF Meter includes audio signal analysis and a standard directional antenna, peak hold feature, data output ports. This meter is compatible with the UBB27 “Quasi” Isotropic Antenna which will extend the measuring range 27MHz – 3.3GHz, and allows for Omni-Directional measurements. “Know for sure” what EMF levels you are being exposed to – own a Gigahertz Solutions HF59B RF Meter. Designed to meet Bau–Biologie RF measurement performance requirements. Sophisticated Source Identification Plus Enhanced Accuracy Features Make the HF59B RF Meter Radio Frequency Analyzer – An RF Technician’s 1st Choice Equipped with One Antenna – Directional Logarithmic – Periodic Antenna facilitates source identification. Readings increase when the antenna is pointed in the direction of or moved closer to offending sources. Frequency Range of 800 MHz to 3.3 GHz Is compatible with the UBB27 “Quasi” Isotropic Antenna. This can be purchased separately or as part of the HFE59B Meter Kit Optional Pulsed Signal Setting or Analogue Signal Setting: Allows for in–depth signal identification and RF risk assessment. Studies show that digital signals have the greatest biological impact AC/DC Outputs for Data Logging Functions: Allows for thorough test site assessment through data logging. Also designed to interface with computers and the NFA 1000 Data Logger Detects RF radiation generated by cellular phones and cordless phones (DECT); microwave ovens; Radar; wireless communication devices (such as internet routers, WLAN, Wi-Fi, baby monitors, Bluetooth, video games); smart meters; cell phone towers in the operational range of 700 MHz to 3.3 GHz (GSM, UMTS, 2G, 3G, 4G) Enhanced Accuracy Features: Three Measuring Ranges: (Coarse: 1.0 – 19,999 µW/m² ; Medium: 0.1 – 199.9 µW/m²; Fine: 0.01 – 19.99 µW/m²) Medium range and Fine range options provide added value when needing accurate assessment of moderate to weaker signals Option to add Attenuator DG20 G10: the Attenuator boosts the meter’s maximum measuring range by a factor of 100 (20 dB) which means stronger exposure levels can be accurately assessed up to 2,000,000 µW/m² Peak Hold Feature guarantees accurately capturing momentary pulses, as in those emitted by smart meters Also Includes: The meter’s audio tone replicates the patterns and intensity of measured RF emissions Plug in ear phone accessory is optional Comes equipped with both the NiMH rechargeable battery and battery charger, and a storage/carrying case designed to hold all of the HFE59B components, it can accommodate an additional RF meter or EMF meter Additional Features: Antennas: Directional Logarithmic Periodic“LogPer” 700MHz – 2.7 GHz 45º AC/DC Outputs: Facilitates equipment interfacing: oscilloscopes / spectrum analyzers / full audio assessment /data logging (5 mV DC or 10 mV per digit) switchable LCD Display (3.5 digits): Easy toread 3.5 digit display Accuracy / Linearity Deviation: /– 3 dB Audible Tone: The meter’s audio tone replicates the patterns and intensity of measured RF emissions Signal Detection Type: Peak,Average, and Peak Hold feature – Radar / UMTS / 3G / 4G – Able to measure Analogue and Digital (pulsed) separately Power Supply: Rechargeable battery (NIMH supplied) – compatible with 9 Volt alkaline battery Battery Recharging Unit: 12 VDC battery charger supplied Battery Low Indicator: Meter will auto and power off 3 minutes following battery low signal display Auto Power Off: Saves on battery use – will auto–power off after 40 min of continuous EMF testing Operating Time: NIMH provides up to 7 hours continuous use/ alkaline disposable provides up to 24hrs continuous EMF testing Measuring Ranges: 0.01 –19.99 µW/m² // 00.1 – 199.9 µW/m² // 0.01 – 19.99 mW/m² Carrying Case: Sturdy plastic storage/carrying case included Includes: Plastic Carrying Case – K2 (33 x 27 x 16) cm (13 x 10.6 x 6.2) inches HF59B Radio Frequency Analyzer Antenna – Logarithmic Periodic 700 MHz – 2.7 GHz vertically polarized Users Guide – RF Analyzer 2 Year Warranty Certificate Rechargeable Battery Pack 120 VAC Battery Charger (220 VAC charger available on request) Silicone protective cover – black Calibration: During the manufacturing process, the team follows strict calibration procedures and uses only high-end, calibrated measurement instruments. This approach guarantees that every HF59B meter made by Gigahertz undergoes individual calibration to a traceable standard.
