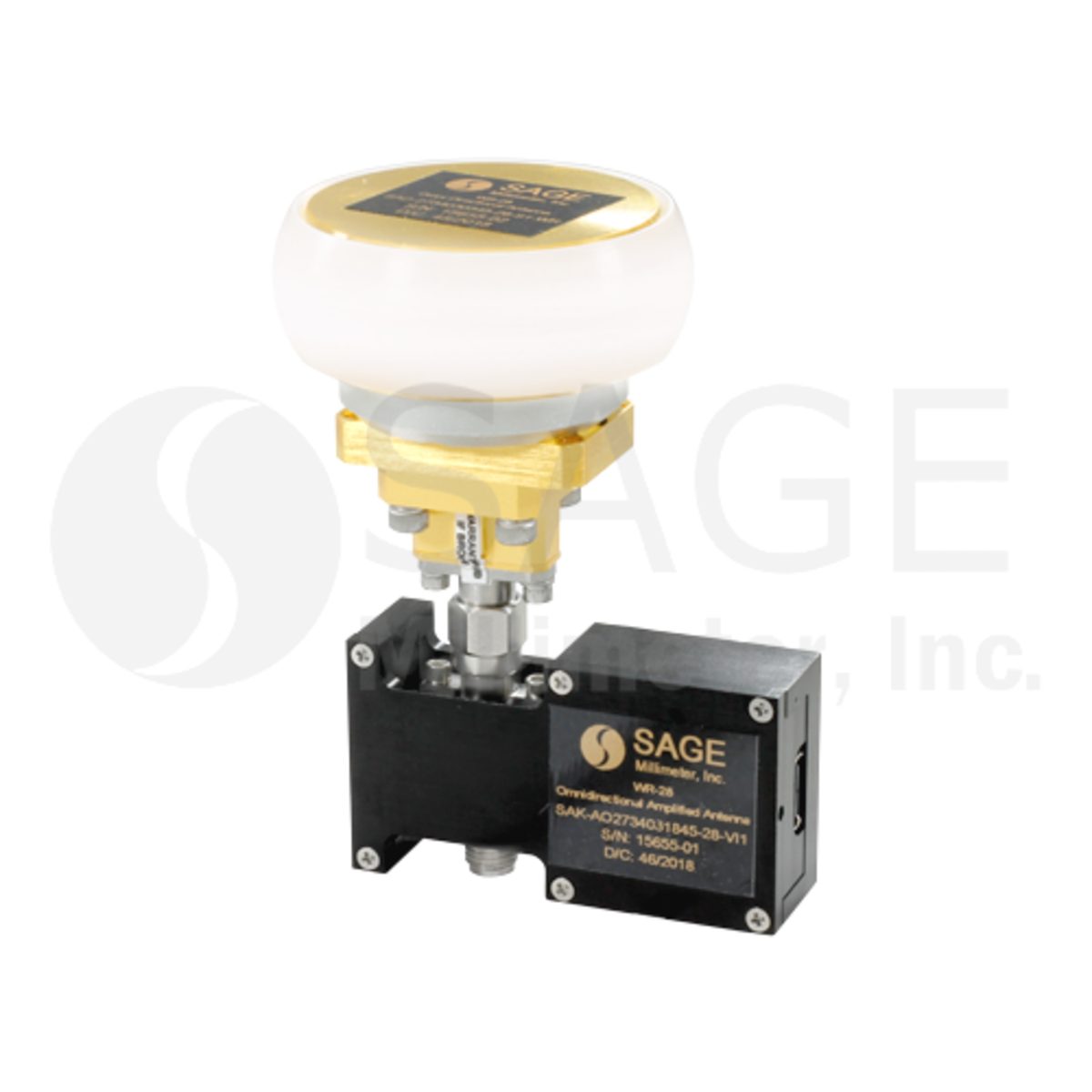

5G mmWave LNA Amplified Omnidirectional Antenna A perfect combination for drive testing and surveys, the SAO-2734031845-KF-C1-BL is a full band, Ka band Omnidirectional Receiving Antenna equipped with a Low Noise Amplifier. It covers the frequency range of 26.5 to 40 GHz. This vertically polarized antenna offers 360° azimuth coverage with 18 dBi typical gain, of which 3 dBi is from the Antenna and 15 dBi is from the integrated LNA. The antenna features a half power beamwidth of 45 degrees in its vertical direction. The power supply of the LNA can be provided via the USB Type-C port with Locking Screw for supply with a 5V battery pack. The LNA incorporates a DC regulator. The RF port of the antenna is equipped with a 2.92 mm female connector. The Amplified Antenna is built to resist indirect sprays of water. Though the combination is 26.5-40GHz but the performance is pretty much the same down to 25 GHz (custom test reports available). Features -Amplified -Vertically Polarized -Full Band Operation -Weather Resistance Applications -5G Systems -Communication Links -EW Systems -Indoor Local Area Networks
