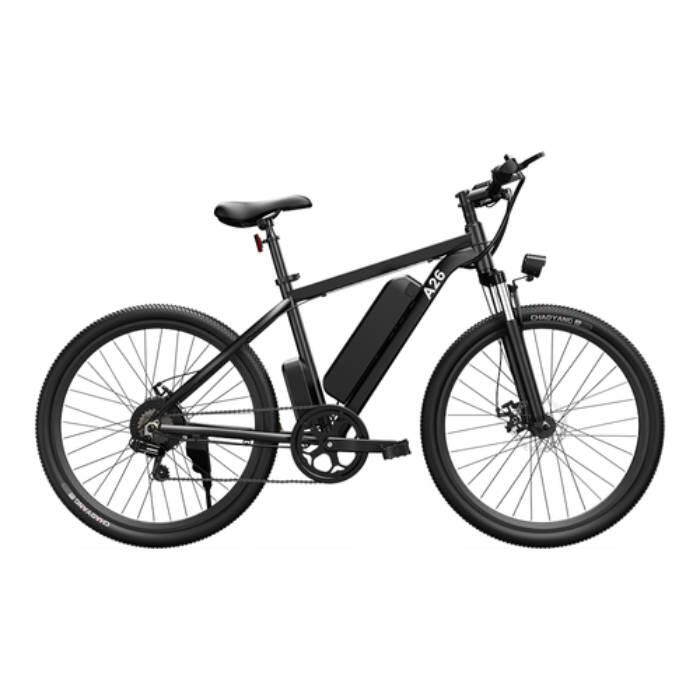

ADO A26 Electric Bike ADO A26 Electric Bike Specifications: Classification Item Specification General Brand ADO Type 20*1.95 Inches Model A26 Color Black/white Vehicle Performance Dimensions L×W×H Overall unit: 17800x 700x 1000 mm After folding: 1600x 260x 780 mm Operating Temperature -10~40°C Storage Temperature -20~50°C Net Weight 21kg Gross weight 25kg IP Rating IPX5 Max. Speed 25km/35km (enduser can unlock to 35km easily) Transmission Shimano 7 speed Electric range <35km Assisting range <70km Shock-absorption Front fork and addle tube double Shock-absorption Brake Front: Mechanical disc brake Rear: Mechanical disc brake Charging time 5 hours Payload ≤120kg Head of Bicycle Material Aluminum alloy Handgrip Material TPR Foldable No Adjustable of height No Small bell Electronic speaker Brake handle Left/Right Mobile Phone Charging Station No Front Wheel Drivenmethod / Material Aluminum alloy Hub type Spokes hub Size 26 Inch Tire Rubber pneumatic tire Brake Mechanical disc brake Rear Wheel Drivenmethod Motor drive wheel Material Aluminum alloy Hub type Spokes hub Size 26Inches Tire Rubber pneumatic tire Brake Mechanical disc brake Main Frame Material Aluminum alloy Type Fixed tripod Parking Parking Stand Battery location Hanging from the frame Reflect Sticker On saddle tube Max Steering Angle 90°(each side) Rear Tale Light / Air pump / Foot Pad Material Nylon Foot Pad Type No Carrying handle No Battery Material Lithium battery Type of batteries Removable portable charging Battery number 30PCS Rated Voltage 36V Charge cut-off voltage 42V Rated Capacity 36V 12.5Ah Charging Temperature 0~40°C Battery ManagementSystem Over-heating, Short circuit, Over- current, Over-charge protection Charger Input Voltage 100~240V, 50/60Hz Output Voltage 42V DC Output Current 2A Output Power 84W Motor Brand Motor Type Hall Brushless DC Motor Rated Voltage 36V Rated Power 500W Max. Power Rated speed System Control Turn On/Off Visible button on the speed control handle Riding Modes Switch Front Light Switch Display Type 886 Type HD LCD Display, Clearly under the sunshine Display Contents Speed, mileage, Gear, glitch Electronic booster starting point 6 KM start (CE) (Can change to 0KM start by enduser) Under voltage protection 31±2V Over current protection 15±2A
